Geberit Duofix 98cm WC Frame with Delta Cistern for Wall Hung WC

Product description

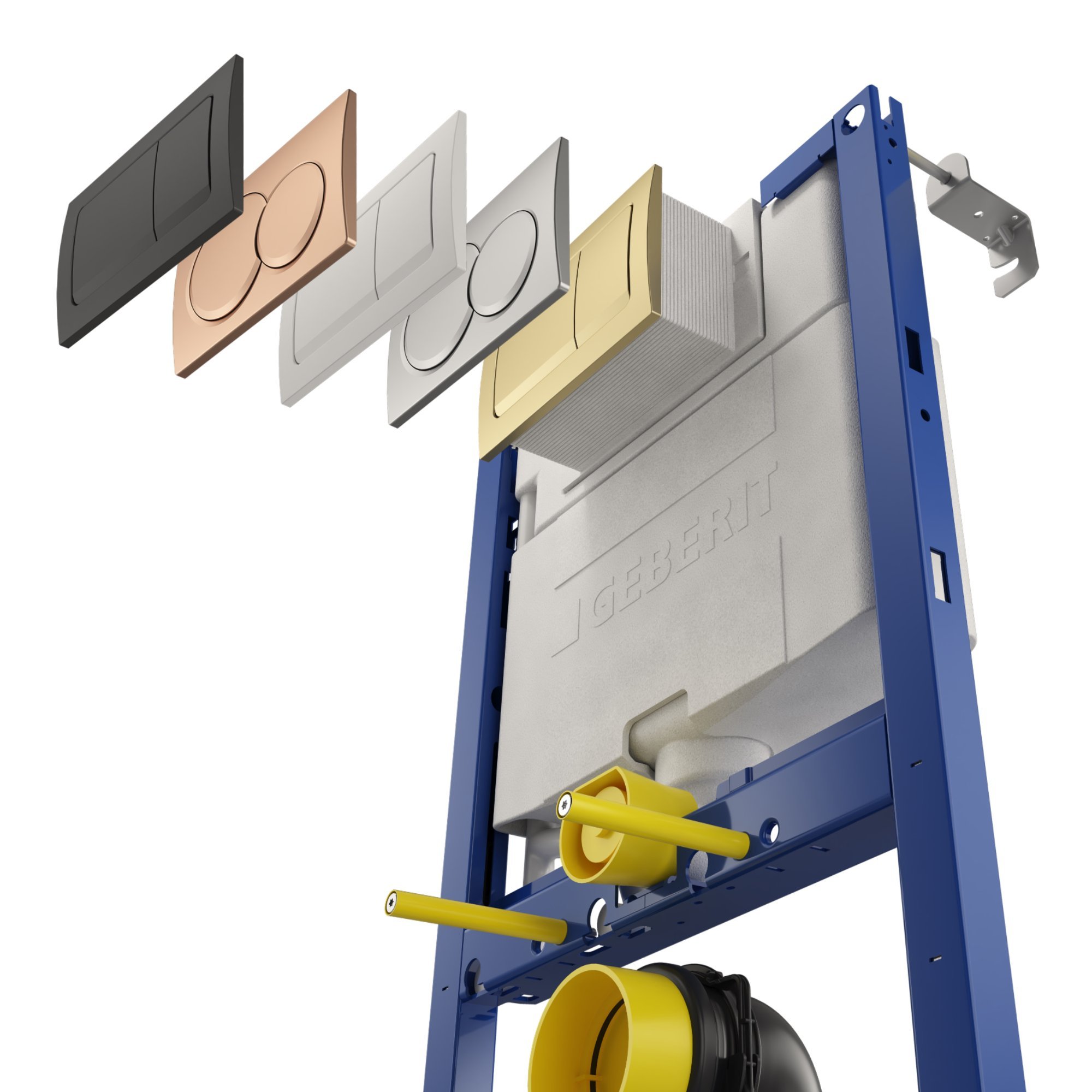

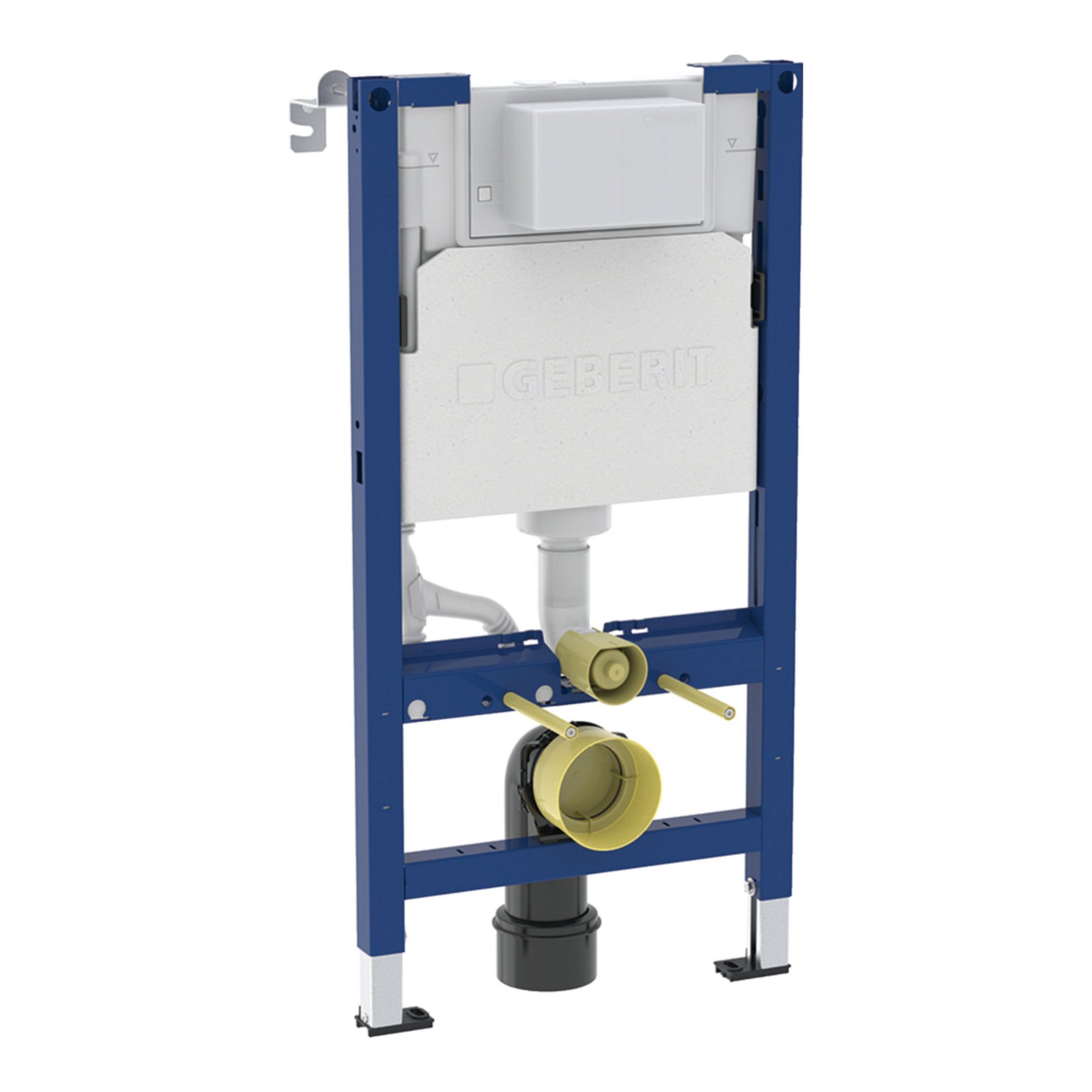

Geberit Duofix 98cm WC Frame with Delta Cistern for Wall Hung WC

This Geberit 98cm Duofix frame for wall-hung WC, with Delta concealed cistern is designed to last, Geberit Delta frames incorporate tried and tested materials which will serve you for years to come.

Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution.

Six Reasons to Choose a Geberit Frame:

• Very Strong: No wobbling or vibrations - strength-tested to bear a weight of up to 63 stone (400kg)
• Durable: Installed 60 million times over the past 50 years, Geberit concealed cisterns represent the ultimate tried-and-tested solution
• Hygiene: No pedestal and no cistern in front of the wall means no exposed pipework for dirt and bacteria to hide
• Simple Maintenance: Simply remove the flush plate for access to all important parts. Geberit stock spare parts for 25 years
• Tested Impermeability: Every Geberit cistern is individually tested to guarantee water tightness
• Acoustics Solutions: Acoustic solutions with the Duofix frame mean it’s all quiet behind the scenes


Application Purposes:

• For drywall construction
• For installation in part-height prewall installations

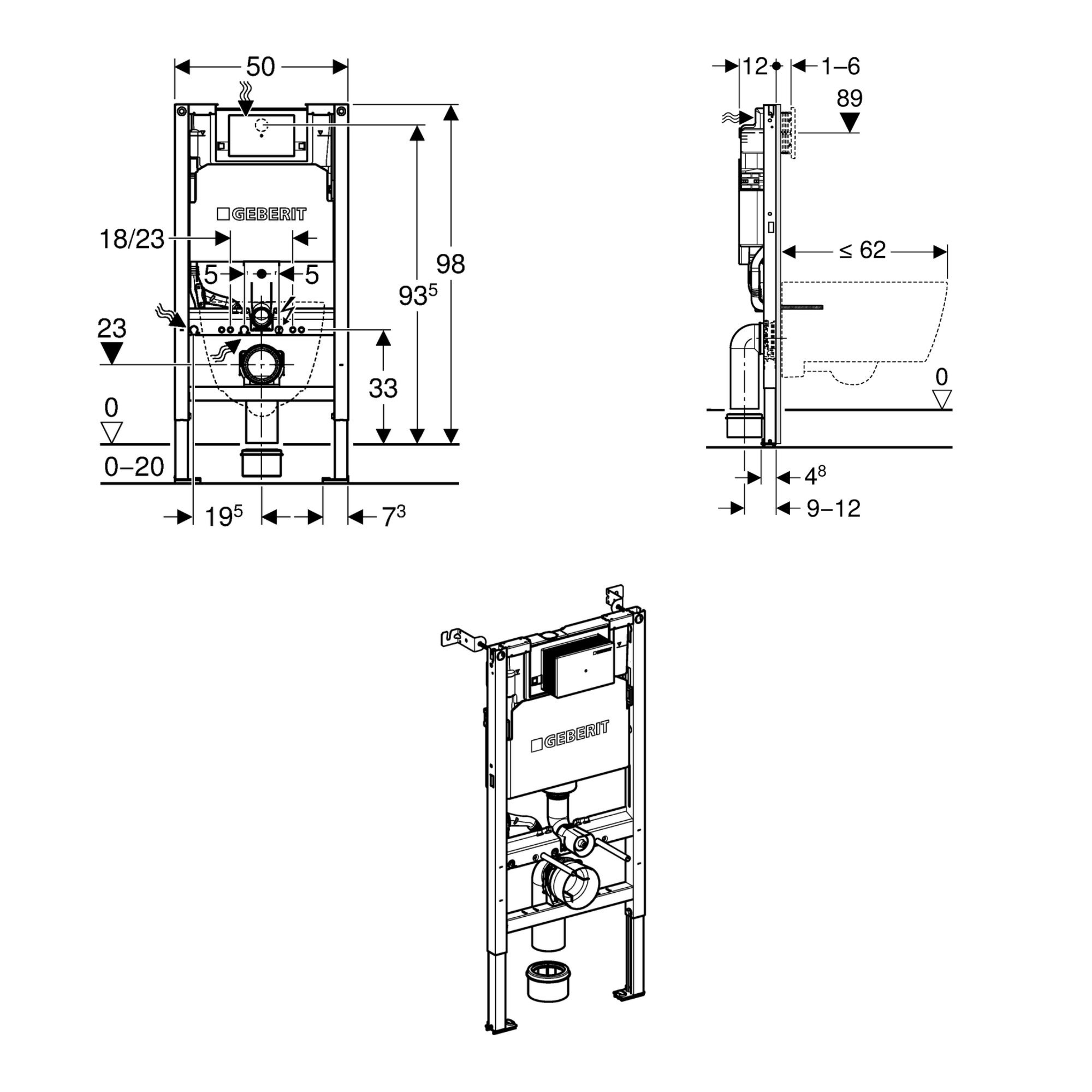

• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62 cm
• For floor constructions 0–20 cm

Characteristics:

• Self-supporting frame, powder-coated
• Frame top open
• Frame with ø 9mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Galvanized feet
• Feet adjustable 0–20 cm
• Foot plates made of plastic
• Connection bend can be mounted without tools
• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Water supply connection on the rear or top centre
• With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• Fastening option for electrical connection

Technical Data:

• Maximum operating temperature, water 25°C
• Flush volume, factory setting 5.8 and 3l
• Flush volume large, adjustment range 4.5 / 6 / 7.5l
• Flush volume small, adjustment range 3-4l

What's Included:

• Angle stop valve R 1/2", compatible with MF, with adapter ring
• Protection box for service opening, made of polystyrene foam
• 2 distance bolts
• 2 wall anchors
• Connection set for WC, ø 90mm
• Connection bend 90° made of PE-HD, ø 90mm
• Adaptor socket made of PE-HD, ø 90 / 110mm
• 2 protection plugs
• 2 threaded rods M12
• Fastening material

Product  Code

• 458.145.00.1 - Geberit Duofix 98cm WC Frame with Delta Cistern for Wall Hung WC
